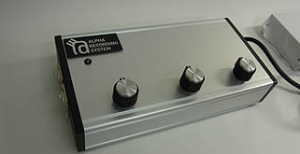

ALPHA RECORDING SYSTEM TABLE TOP 3-WAY CROSSOVER "MODEL 3150"

Tabletop Isolator. Ideal for Band/PA Recording. Also great for travel
because of its compact size.

[Product Specifications]

Maximum boost 18dB
+-1db 20hz-20khz frequency characteristic
impedance RCA unbalanced 20kΩ / XLR balanced input impedance 40kΩ
RCA unbalanced impedance 600Ω / XLR balanced output impedance 50Ω
maximum output level of +20 dBu
Low Mid Hi 3 band crossover type
Fixed: 24 dB / Octave / Linkwitz-Riley crossover point
three hundred Hz / 300 - - 4 000 Hz / 4,000 - 10 20000 HZ

BOX external power supply voltage 100vac 50/60Hz
Dimensions front panel 1u size (W) 256x (H) 45.6X (D) 132.6Mm
10W power consumption
